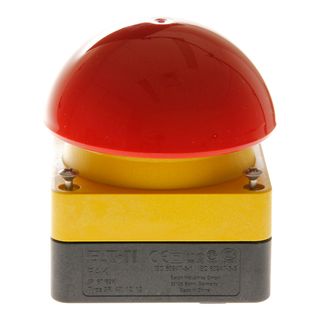

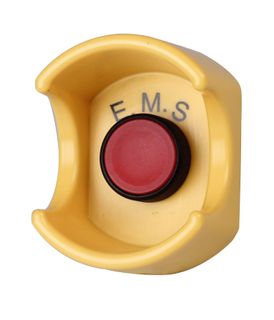

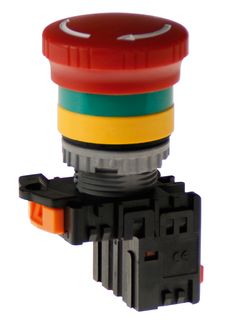

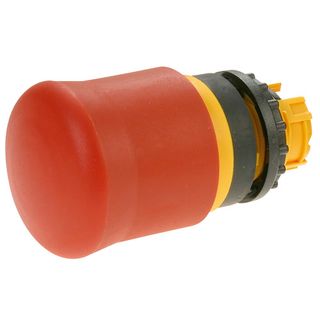

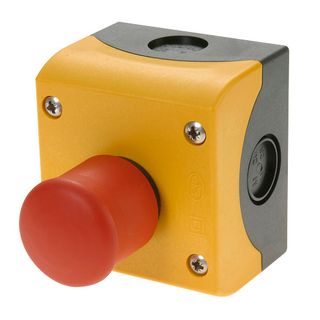

Emergency stop switches

Here's a breakdown of Emergency Stop Switches which is a type of Control Circuit Switching, focusing on key features and benefits:

  • Provide an immediate and reliable method to halt machinery operation in hazardous situations.
  • Act as a critical safety mechanism to protect personnel and prevent equipment damage.

Key Features & Specifications:

  • Brands: COMEPL, EATON, TEND offer reliable solutions.
    • COMEPL ECX & SA ranges – Known for robust industrial performance.
    • EATON: RMQ Titan range – Features modular design and high durability.
    • TEND: Offers cost-effective options with essential safety features.

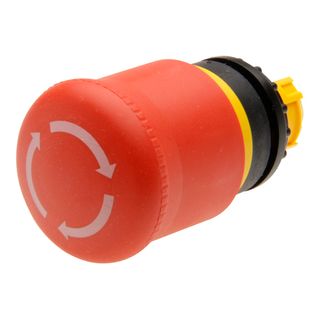

  • Actuation: Head push-pull release, dedicated push buttons for emergencies, and red pull-release options are common.

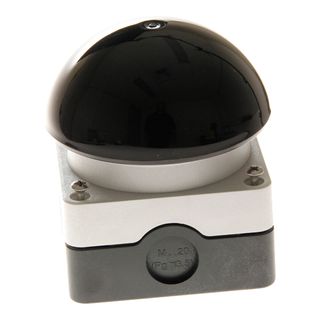

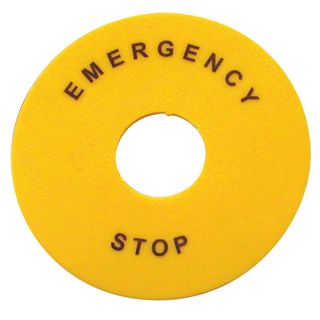

  • Colors: Typically red actuators for high visibility, often with a yellow background. Black and clear switches might be used in specific, less critical applications within the control circuit.
  • Voltage: Commonly rated for 240VAC.
  • Current Rating: Often specified at 10A.
  • IP Rating: Offer protection against dust and water ingress, with common ratings including IP65, IP66, and IP67.
  • Dimensions: Standard 22mm mounting diameter for easy integration into control panels.

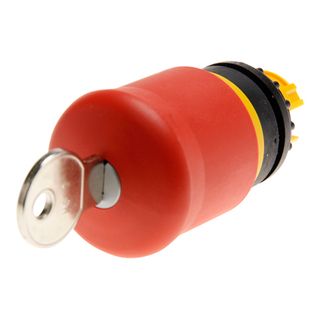

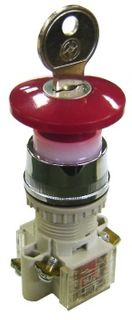

  • Latching Mechanism: Prevents accidental restarts until manually reset (twist, pull, or key release).

Potential Applications:

  • Essential in various industrial settings: Manufacturing and assembly lines, Automated machinery and robotics, Conveyor systems, Transportation systems, Food and beverage processing, Chemical processing plants, Power presses and injection molding machines.

Benefits: Ensuring Safety in Control Circuits

  • Enhanced Safety: Provides a crucial fail-safe for immediate shutdown in emergencies.
  • Accident Prevention: Rapidly stopping operations minimizes risks of injury and damage.
  • Regulatory Compliance: Often necessary to meet safety standards.
  • Quick Response: Easily identifiable and accessible for swift activation.
  • Durability and Reliability: Designed to withstand industrial conditions and frequent use.

Emergency stop switches are fundamental components in ensuring a safe working environment, offering a critical layer of protection within control circuit systems.
